| MOQ: | 5 szt |
| Cena £: | $100-$150 |
| Standardowe opakowanie: | Skrzynia ze sklejki przeznaczona na eksport |
| Okres dostawy: | 35 dni |
| Metoda płatności: | T/T |
| Wydajność dostaw: | 3000 sztuk/dzień |

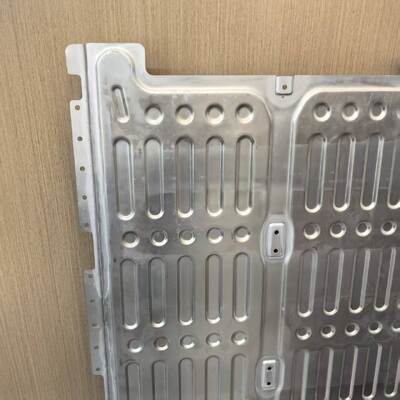

Products introduction:
Product Parameter
| Category | Details |
|---|---|
| Material Selection | Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used) |
| Key Processes | 1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination |
| Structural Design | 1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm |
| Performance | 1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate |
| Cost | Typically RMB 27~35/kg, with relatively high tooling cost |
| Weight | Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area) |
| Lead Time | High design flexibility and short prototyping cycle |
| Maturity | Most widely adopted process, with >90% market share |
FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 18 years history in this industry.
Q: What is your terms of payment ?
A: Normally 100% T/T In advance,But this is something that can be negotiated.
Q: How long does it take for samples and mass production?
A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
