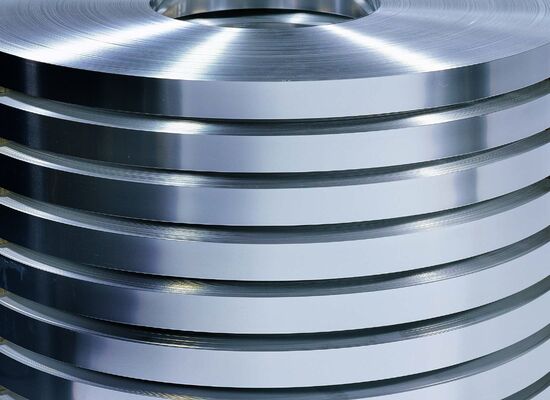

Automotive Condenser Aluminium Foil Roll Thin Narrow 35mm Width SGS Standard

Automotive Condenser Aluminium Foil Roll Thin Narrow 35mm Width SGS Standard
Automotive Condenser Aluminium Foil Roll Thin Narrow 35mm Width SGS Standard Automotive Condenser Aluminium Foil Roll Thin Narrow 35mm Width SGS Standard

Duży Obraz :  Automotive Condenser Aluminium Foil Roll Thin Narrow 35mm Width SGS Standard

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Trumony
Orzecznictwo: TS16949 , ISO14001 and OHSAS 18001
Model Number: TR-FR060
Zapłata:
Minimum Order Quantity: 5 metric tons
Cena: negotiation
Packaging Details: Standard export packaging
Delivery Time: 30 working days after received your down payment
Payment Terms: T/T or LC
Supply Ability: 100,000 mt per year

Automotive Condenser Aluminium Foil Roll Thin Narrow 35mm Width SGS Standard

Opis
Core Alloy: 3003+1.5%Zn+Zr Clad Alloy: 4343
Thickness: 0.1mm Width: 35mm
I.D.: 300mm O.D.: 1000-1100mm
Packaging: eye to sky Temper: H16
High Light:

aluminum foil roll

,

heavy duty aluminum foil

0.1 x 35mm 4343/3003+1.5%Zn+Zr/4343 H16 Aluminum Foil Roll for Automotive condenser





1. Description of our production



Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger



1) Core Material



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6



2) Cladding Material



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 0.03 7



3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger



Alloy Code temper

Tensile Strength

Rm(MPa)

Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)

TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8

TR-116,TR-316 Etc.tube

material

H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8



Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..



Additional: We can produce special specification according to customer’s request.



4) Produce capability



  Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
Sheet 500-1070 0.5-5.0 500-2500 -
Strip 12-1070 0.2-3.0 - 150,200,300,400,500
Foil 12-1070 0.05-0.2 - 150,200,300,400,500



Composite ratio 4-18%(per side)



Percent Clad(per side) 4-8% > 8-18%
Cladding tolerance ±1.5% ±2.0%





2. Our advantage



1. Since 1988, we have rich experience in this industry in China;



2. Good reputation in Aluminum and Copper Areas;



3. We start our productions from aluminum ingot,so we can control the quality as well;



4. We have our own development department for new material research;



5. Good experience and cooperation with big client in the world;



6. With Certificate TS16949, ISO14001 and OHSAS 18001;



7. High performance cost ratio;



8. Fast delivery time;



9. Good communication skills, and good service and understandings for customers;.





3. Application:



1. Oil Cooler



2. Automobile Radiator



3. Automobile Heater Core



4. Condenser



5. Evaporator





4. Features



Our product line covers all kinds of alloyed material and specifications which is widely used in the automobile and construction machinery and equipment cooling systems, power station cooling system, micro-channel cooler and all kinds of both commercial and residential air-conditioners.
